Hobby RAS for trout and zander farming
Breeding system for hobby fish breeders to supply the household with fresh fish. The RAS is integrated into the architecture of the garden and dominates the production part of the garden.
The breeding tanks are designed in the form of outdoor swimming pools with PVC foil waterproofing. They are fully serviceable from all sides and are equipped with pool lighting for easier control or handling of the cast during the night. Scraped biofilters are integrated in the design waterfalls.

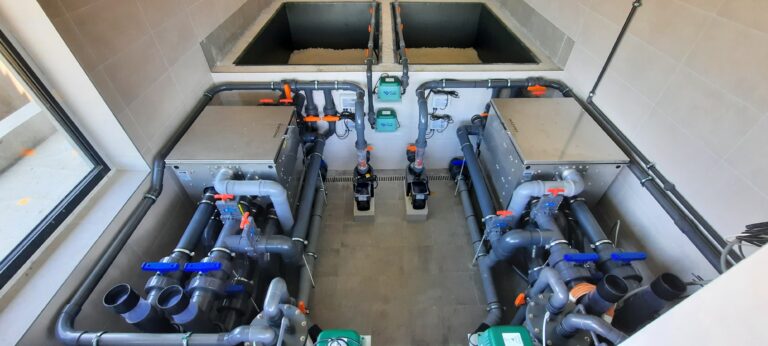

The filtration technology is located in the technical room immediately adjacent to the breeding tanks. Each pool has its own filtration circuit. The entire system is controlled and monitored by the SENECT online control system, including a mobile app. The breeder can therefore keep an eye on the RAS at all times and can safely manage and control it remotely.
If you are interested in a similar system, please do not hesitate to contact us at any time.
Technical parameters
- Breeding tanks 15 000l and 20 0000l
- Mechanical filter: drum filter Inazuma ITF 80 and ITF 120
- Biological filter: floating bed bioreactor (MBBR)
- Recirculation pumps: nominal output 30 000l/hr, real output 27 000l/hr, 800W
- Biofilter blower: 200l/min, 110W
- Breeding tank blowers: 150l/min, 90W
- UV lamps: 55W, 8 pcs
- Ozonizer: 2g O3/hr, 2 pcs
- Monitoring and control : Senect Aquaculture PRO ( on-line monitoring,O2,pH,temperature,ORP and level + control of the device )
- System cabinet
- Automatic tempering and cooling
- Automatic feeders Linn profi 5kg
- Annual production of approx. 500 kg of salmonids and 300 kg of zander
- Total volume: approx. 38 000l
- Flow rate: 8500l-27 000l/hr depending on system settings
- Power consumption approx. 1600W/hr/circuit, depending on settings
- Realisation 2024
