RAS modul 3T

It is complete recirculation aquaculture system that is designed for everyone. It can be used in the proffesional fish farming or in hobby fish farming too. RAS Modul ca be used as a “fish” part of an aquaponic system also. It is ideal as pilot project for aquaculture begginers or for the RAS investors, who want to try small-scale fish farming before bigger investment.

Our RAS modules are easy to install easy to operate and easy to maintain.

For more informations about our RAS modules dont hesitate to contact us, we looking forward to your inquiries

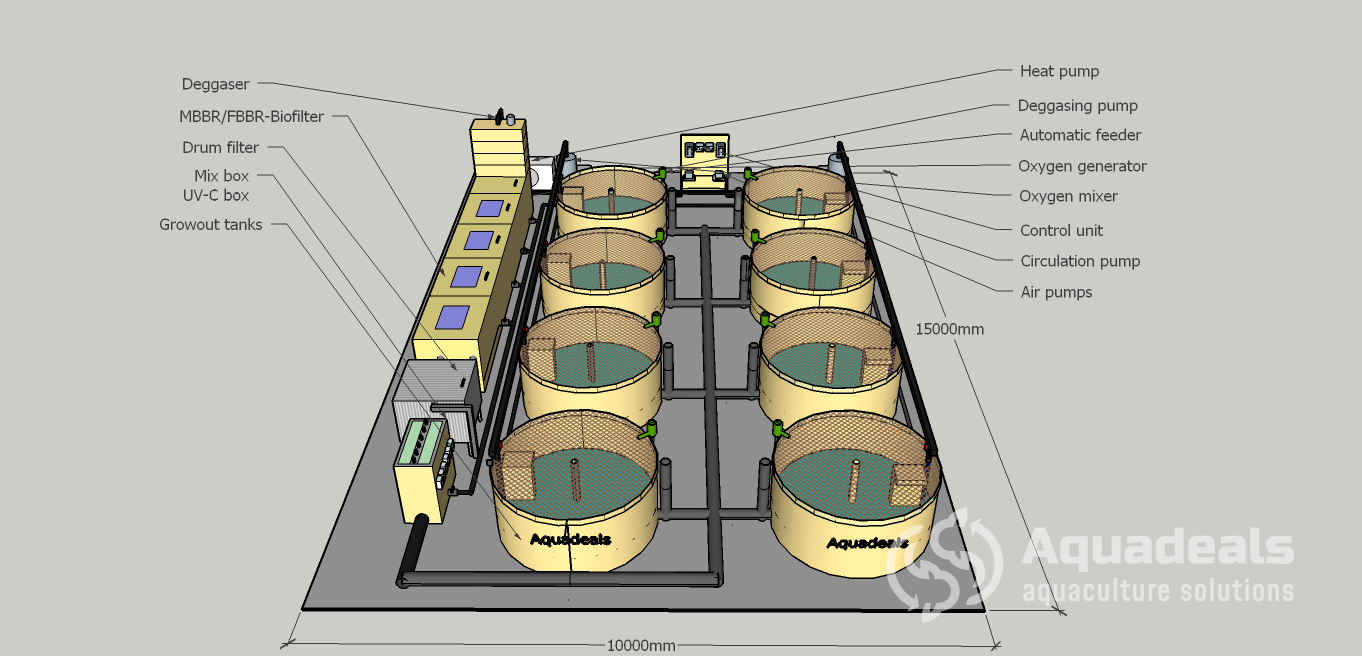

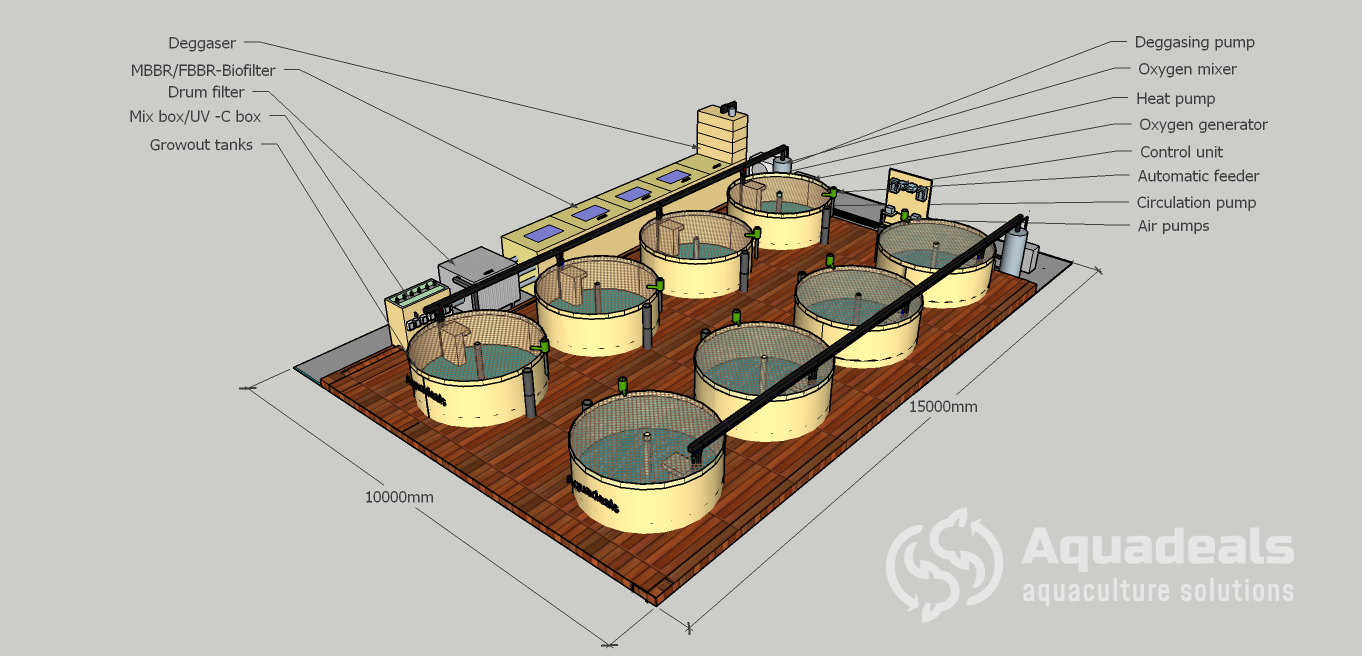

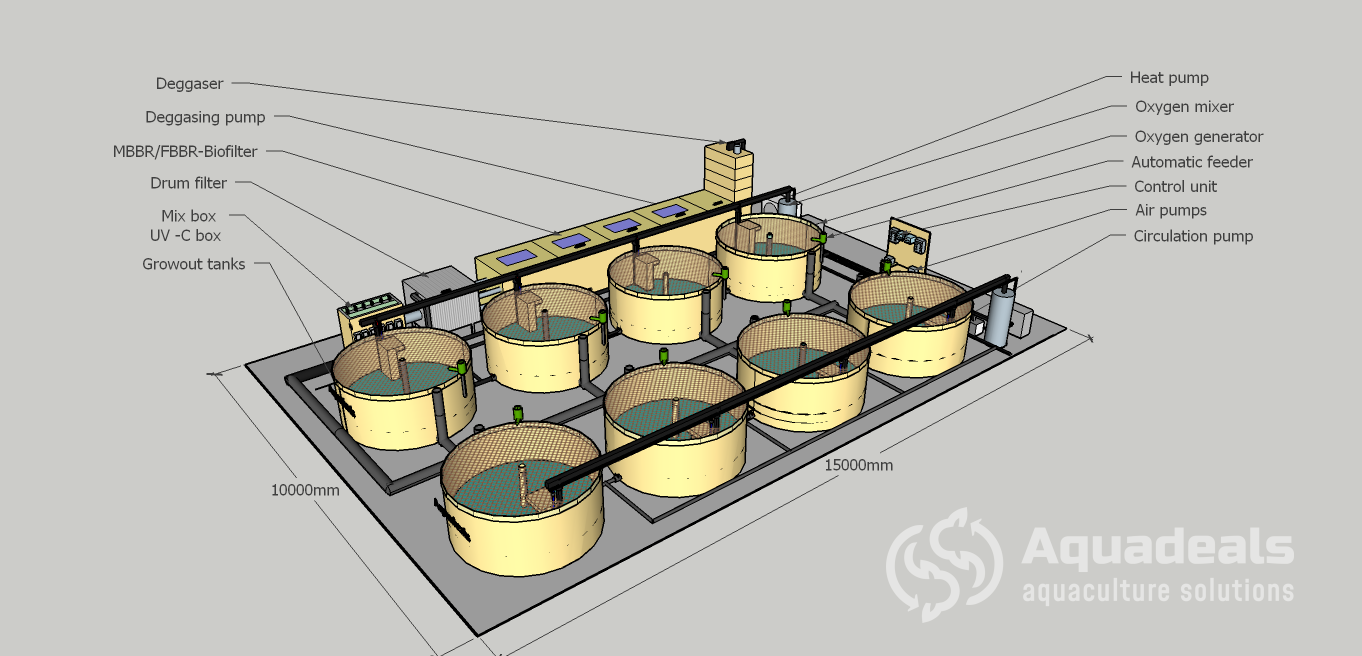

RAS Module 3T composition:

Breeding tanks

circular, with central collecting cylinder
with safety overflow
outlet system in a side pipe exposing the level in the tank
drainage by a separate valve
with integrated additional airlift (aeration of tanks, circular flow in tanks)
with integrated nozzle manifold of the return pipe
upper pipe lining
cover net against fish jumping out
height 1200 mm, diameter 2600 mm
rearing volume approx. 4000l
manufacturer Aquadeals s.r.o.

Mix box/UV-C box

merging chamber of the collection pipe from the rearing tanks
used to compensate for pressure losses in the collection piping
serves as a storage tank for the rearing system
serves for the installation of submersible UV-C lamps
serves as a reference point for the installation of sensors
serves for the installation of automatic discharge
serves as an additive point for the physicochemical therapy of the system
volume 1,5 m3
manufacturer Aquadeals s.r.o

Mechanical filter

drum filter
with automatic rinsing
with integrated safety overflow
including control unit with mobile app

Biological filter

with floating bed (MBBR)
fixed Bed Filter (FBBR)
with RK-BioElements cartridge
with aeration
cleaning of the FBBR part with an integrated blower
draining of the chambers by a separate valve from the bottom
including hatches with hatches and vent heads
volume 7m3
MBBR and FBBR media volume 4,5m³
manufacturer Aquadeals s.r.o.

Degassing tower

serves for water degassing and biological filtration
integrated scraped filter
with integrated pump
including filter cartridge 600l RK – BioElements
manufacturer Aquadeals s.r.o.

Installation panel

serves for optimal positioning of the control elements
enables logical arrangement of control units and system cabinet
facilitates system operation and servicing of the control elements
manufacturer Aquadeals s.r.o.

Circulation pumps

IP PRO 25 000, inverter with integrated frequency converter
rated output 0- 25 000 l/hr
real output in the system 15 – 25 000 l/hr depending on the rearing intensity
power input 300 – 1100W
4 pcs

Biofilter air pump

Secoh JDK – S 200
air volume flow in the biofilter approx. 270l/min
power input 180W
2 pcs

Grow out tanks air pump

Secoh JDK – S 200
air volume flow rate in the biofilter approx. 200l/min
power input 140W
used to drive additional airlifts in rearing tanks
2 pcs

UV-C lamp

submersible amalgam germicidal fluorescent lamp
stored in the installation part of the UV-C box
power input 90 W/pc
total power 720W
lamp life 16 000 hours
electronic ballast with soft start
8 pcs

Blower

used for washing the fixed bed of the biofilter with pressurized air
in operation only during maintenance of the biofilter
running time approx. 60 seconds for 1 wash cycle
power input 600W

Oxygen generator/oxygen mixer

the PSA oxygen generator is used for controlled oxygen enrichment of water to a level of 102% relative saturation
only operates when the oxygen level actually drops below 100% saturation
including drive compressor
oxygen mixer used for ideal dissolution of produced oxygen in recirculated water, installed at the bypass of the pressure line
generator input 300W
max. generator output 2,5m³ O2/hr
oxygen purity 90-95%
oxygen pressure 6,2 bar
drive compressor output 18 000l of air/hr

Control unit

Senect Aquaculture/PRO
allows monitoring of basic physico-chemical water parameters
e.g. pH, oxygen, temperature, level, ORP, etc.
allows monitoring and control of all devices in the system online using the SENECT mobile app

System switchboard

with integrated 16 mA current protector
with socket circuits
each circuit protected by its own circuit breaker

Automatic feeders

5kg variant
manufacturer LINN
with its own control unit, which allows accurate and efficient feeding

Heat pump

temperature control in the system
Inverter T.C. with heating and cooling function
installed on its own bypass
heating capacity 8,5kWh

RAS module 3T- technical parameters

total volume 40 000l
flow rate 80 000l/hr
water consumption approx. 1500 – 2000l /day depending on the intensity of breeding
average energy consumption without T.C. 3250-6500 W/hr depending on system settings
annual production approx. 3000kg depending on the species reared
production intensity max 100kg/m³

The RAS 3T module can be supplemented with additional equipment to fully meet the operational requirements of the breeder. The following devices are available to extend the module:

emergency oxygen (solution to ensure breeding in case of power interruption)
UPS back-up power supply with power station
ozonizer, output 2 – 10g/O3/hr
growing system for Aquaponics
walking floor to cover the pipes

RAS module 3T we are able to design and manufacture exactly according to your requirements, if you are interested, please contact us.

Aquadeals RAS modul 3T
